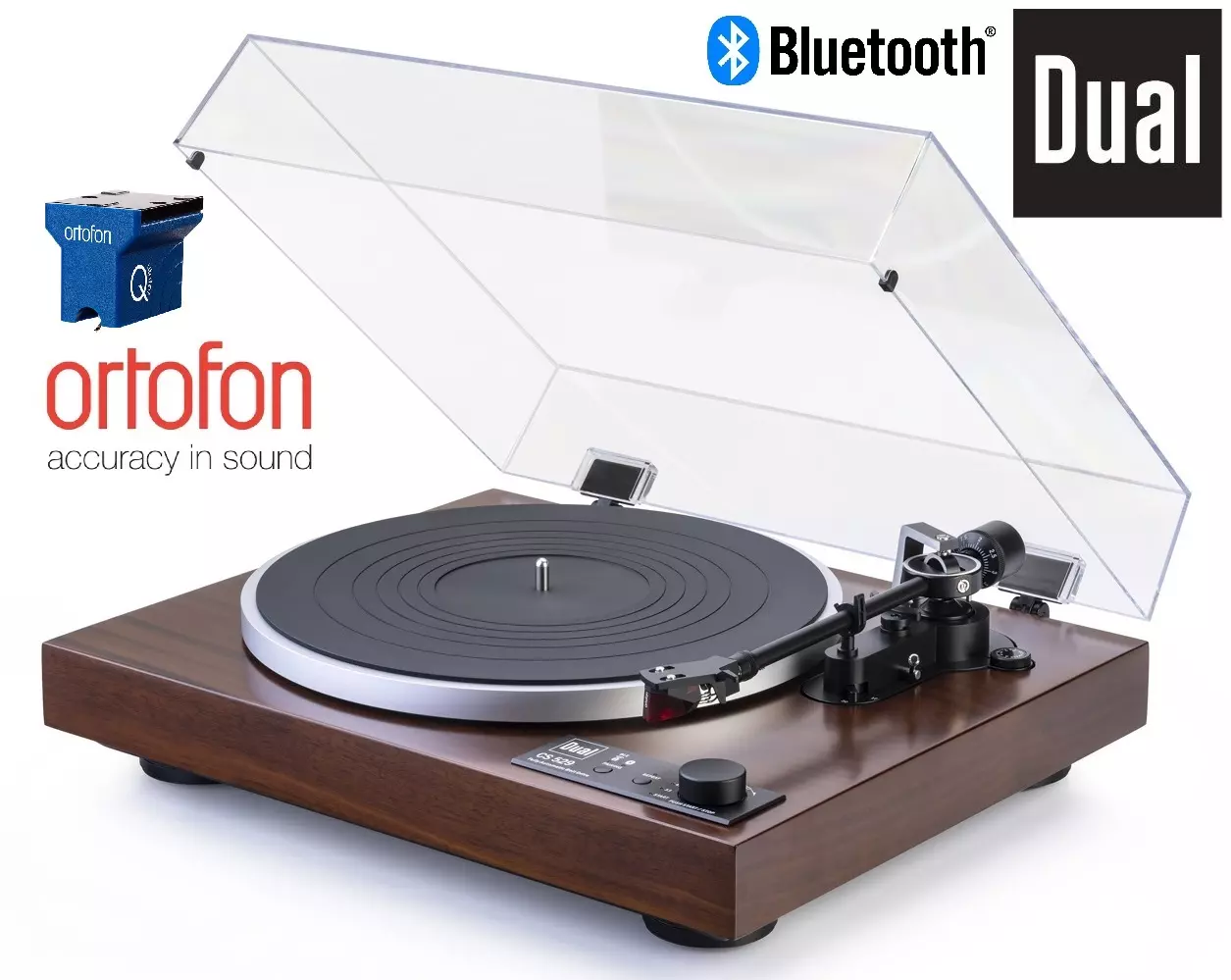

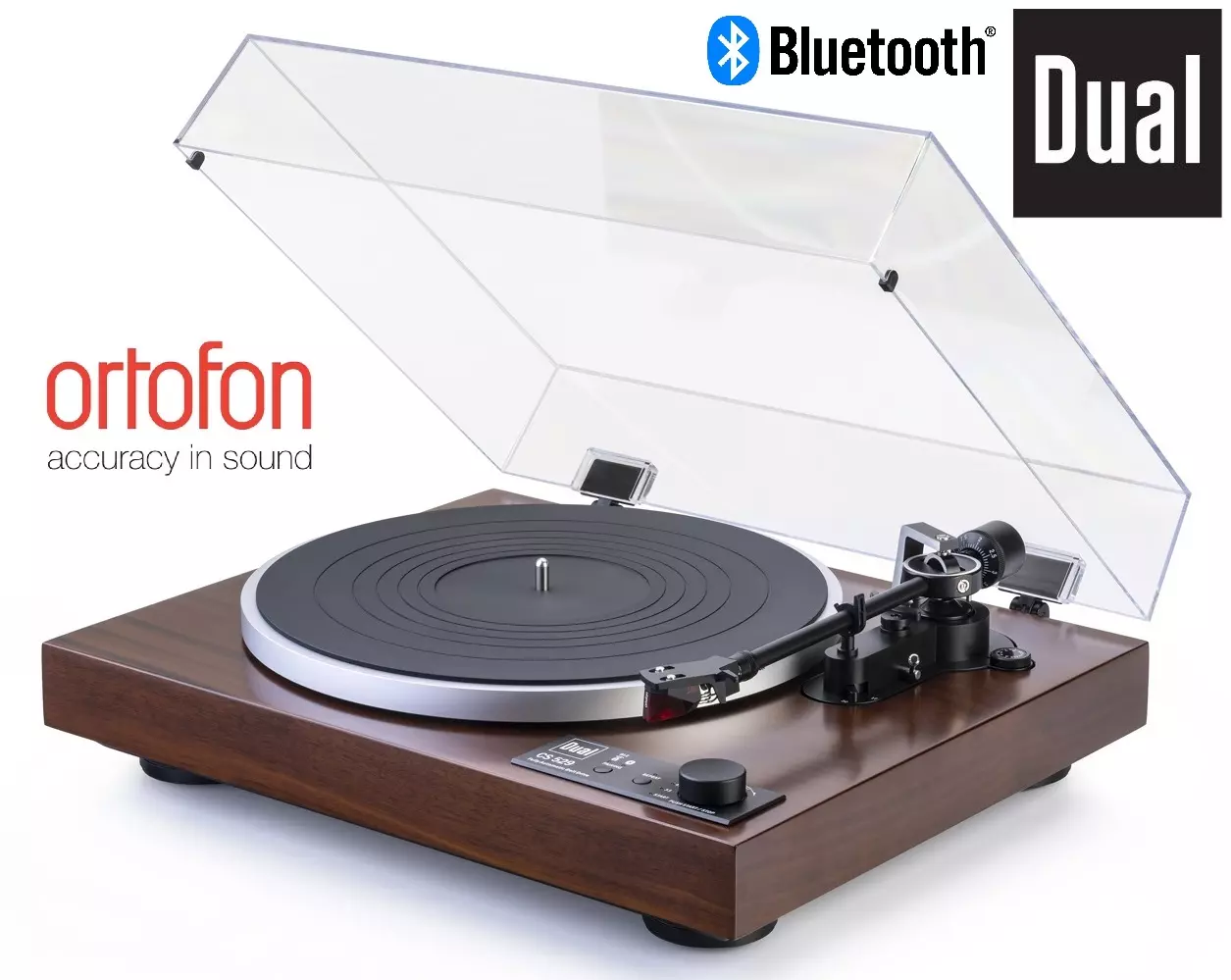

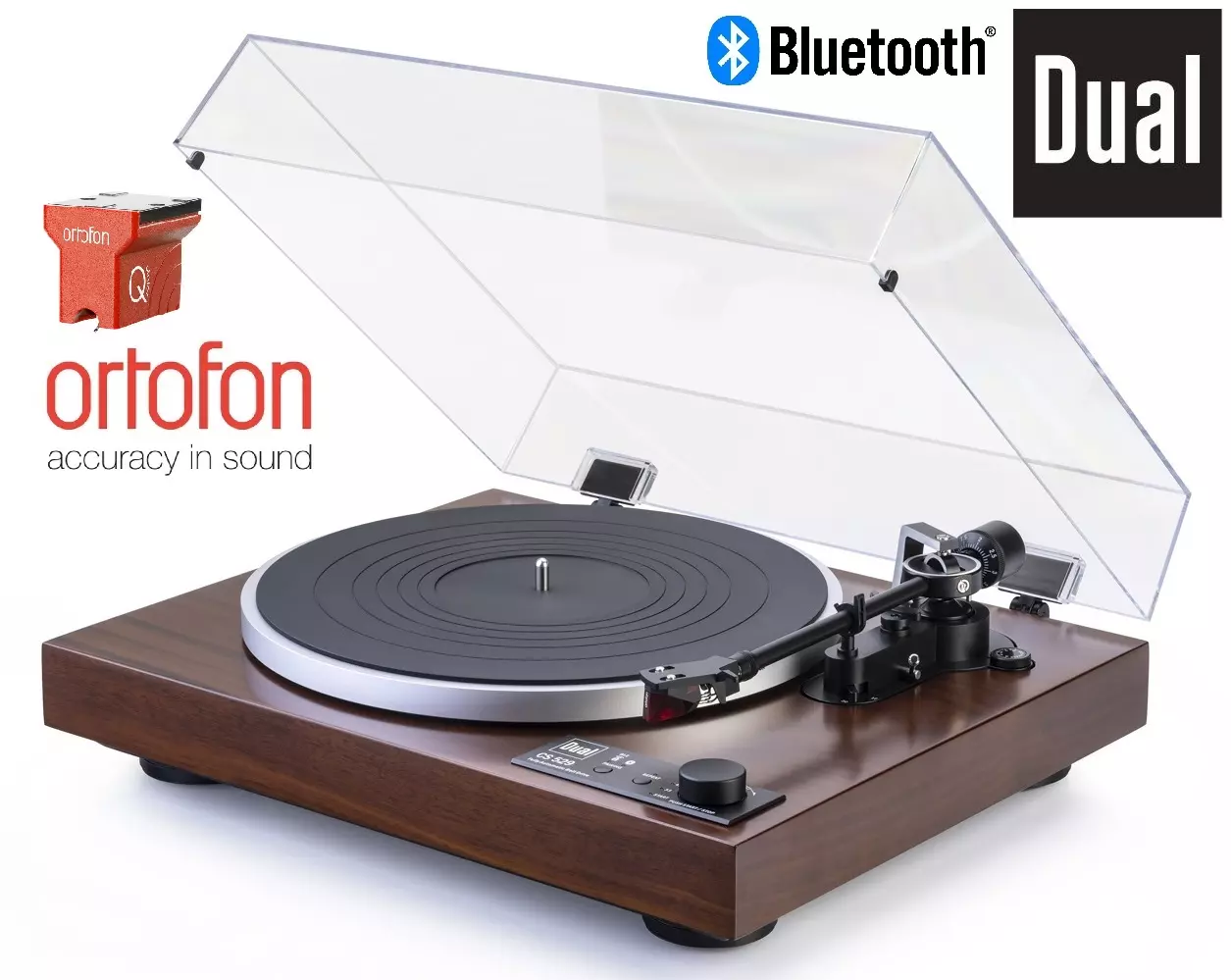

DUAL CS 529 Walnut + Ortofon

Full Specifications

DUAL's chief and best German engineer, Mr. Alfred Langer, has been working on the all-new CS series for over 3 years. The result is top quality models that we at DUAL are rightly proud of.

• We have been with you since 1900 = we have a tradition of over 120 YEARS (DUAL history to viewHERE)
• between 1900 - 1907 we supplied fine mechanical parts to the watch industry = time demands precision and precision demands time
• in 1907 we brought watchmaking precision into the production of phonographs = the ability to build with precision makes DUAL phonographs the right phonograph
• turntables have been DUAL's core business for 114 YEARS = and the future will be no different
• we are a legendary German turntable brand = you don't just become a legend
• we invented the "perfect" and patented DUAL automatic for turntables, when the arm is inserted, the automatic is completely disconnected and only comes back into play at the end of the record = operating comfort and great sound
• we are pushing the technology in the field of turntable arms with the DUAL patent "Twin Gimbal" = a precise arm that uses the potential of the cartridge to the maximum
• we are developing Direct Drive Motors for turntables with the DUAL patent of "twin shielding" = quiet, precise, without interference
• we offer an exceptional balance in precision / user comfort / sound performance / price = no reason to buy elsewhere
• we are so confident in the quality of the new CS series that we offer the longest warranty on the market = it doesn't stop with DUAL
• we are the 2nd strongest turntable brand on the Czech and Slovak market = we were with you in Czechoslovakia back in the 70s and 80s, in TUZEX, but we were...(we share the second place with our respected competitor, another legendary brand,THORENS)

The emphasis on high precision components is a feature of the entire new CS series of DUAL turntables.

DUAL represents a whole new generation of fully automatic models that boast a level of precision that no other machines (not even some fully manual models) on the market can match.

1. IN THE WORLD

BLUETOOTH REMOTE CONTROLLED TURNTABLE USING A SMARTPHONE APP

The CS 529 is the audiophile's fully automatic turntable for the true vinyl enthusiast, as it features ourour DUAL patented static-balanced direct full gimbal arm, the Twin Gimbal: vertically and horizontally clamped in precision ball bearings, which has the ability to guide even the highest-endprecision and reliability and is used for the first time in a fully automatic turntable at this affordable price level in our history. As an added bonus, the CS 529 also allows fully manual operation, you simply lift the arm from the stand, the platter spins and you guide the arm to the top of the record and lower the damped jack yourself.

The CS 529's equipment includes a choice of transmissions, a reference among lower mid-range MM transmissions, ORTOFON 2M RED, or a reference among mid-range MM transmissions, ORTOFON 2M BLUE .or the reference among the upper mid-range MM transceivers, the ORTOFON 2M BRONZE , and one of the best transceivers on the market ever, the ORTOFON 2M BLACKiswitchable MM phono preamplifier. When operating with the MM phono preamp turned off, or using an external MC phono preamp, you can then choose an MC-type transmission, namely the Golden Ear 2020 award-winning MC transmission behindORTOFON QUINTET RED , a mid-range MC transmission, or the What Hi-Fi 5-Star 2020 award-winning lower mid-range MC transmission, ORTOFON QUINTET BLUE.

The CS 529 is the only full machine on the market that has a combination of these advantages:

• Bluetooth Remote Control via smartphone app
• Bluetooth transmitter for transmitting music to active speakers, headphones, audio components, etc.
• DUAL patented statically balanced direct full gimbal arm Twin Gimbal: vertically and horizontally clamped in precision ball bearings
• Detachable headshell
• Dynamic Anti-Skating
• Cast Plate
• 2.5mm thick rubber Slip Matt DUAL
• Hardened mandrel in brass housing
• Optical encoder for precise speed control
• Ability to accommodate center weights up to 500g
• New DUAL patented mechanics with fully detachable mechanism when reproducing
• Possibility to operate in manual mode

The fully automatic CS 529 model thus provides the ultimate user experience. Simply place the vinyl record on the platter and press the touch start button, the arm will lift itself, slide to the top of the record and lay down. At the end of the plate, it lifts again and returns to the starting position. You can also control all of this with an app on your smartphone.

The CS 529 is not only attractive because it is excellent value for money, but also offers excellenta compelling and convincingly balanced audio experience backed by a 5-year warranty for long-term satisfied ownership.

The synergy of all elements results in an audiophile turntable for the discerning listener with clean design, quality components and a very good price. Thanks to the sophisticated arm used, you will be hard pressed to find a competitor on the market that can match this model at the price.

BASIC

• Solid folded MDF construction = strengthens the entire chassis & is elegant
• Base available in black vinyl with wood grain or real walnut veneer
• Anti-vibration base = increases the vibration resistance of the whole unit
• Elastomeric vibration absorber integrated inside the legs = absorbs the first vibrations
• Removable and adjustable plexiglass dust cover with metal hinge brackets = prevents dust from settling in sensitive areas
• Bluetooth Remote Control
• Bluetooth transmitter

TALER

• DUAL precision die-cast aluminium weighing almost 1kg = provides smooth rotation & greater inertial force
• Heavy duty and 2.5mm thick rubber slipmat DUAL = perfectly dampens unwanted resonances
• Top quality disc bearing manufactured according to the old DUAL method = ensures a completely smooth running
• DUAL exclusive hardened steel spindle in brass housing = allows the use of a clamp up to 500g

FRAME

• DUAL patented statically balanced direct fully gimballed Twin Gimbal arm: vertically and horizontally clamped in precision ball bearings = superior arm for superior transmissions
• Damped arm lifter = gently places the transfer case on the vinyl record
• Adjustable clamping force - Dynamic Anti-Skating = engages every spot on the record as it should
• Removable transfer head (headshell) for easy handling = 2 transfers? No problem...
• Choice of MM transmission = ORTOFON 2M RED / 2M BLUE / 2M BRONZE / 2M BLACK = each is great
• Choice of MC Transmission = ORTOFON QUINTET RED / QUINTET BLUE (when operating with the internal MM Phono preamp turned off, or when using an external MC Phono preamp)

POHON

• DC silent DC servo motor with low vibration and high torque = no motor noise
• Precise optical speed control = speed under control
• Rubber motor grips for vibration isolation = motor transmits torque, not vibration
• Quality flat belt for less wow & flutter = no slip, no fall

EQUIPMENT

• Built-in switchable phono preamp for easy connection to the input on a PHONO or LINE amplifier = always connect the turntable
• Gold plated RCA connectors = ensure perfect contact & allow the use of a better phono cable
• Detachable Phono signal cable with gold plated connectors = extra something in the base

POHON

• Drive = belt drive
• Speeds = 33/45/78
• Stability = < ±0.08% (DIN WTD)

FRAME

• Function Bluetooth Remote Control
• Bearings = Ball
• Effective length = 221.5mm
• Lift angle = 25.6°
• Overhang = 19mm
• Type = 4 x Pivot ball-bearing / Twin Gimbal Statically Balanced
• Clamping force range = 0 to 4g
• Weight range = 5 to 9g
• Choice of MM transfer case = ORTOFON 2M RED / 2M BLUE / 2M BRONZE / 2M BLACK
• MC cartridge selection = ORTOFON QUINTET RED / QUINTET BLUE (when operating with the internal MM Phono preamp turned off, or when using an external MC Phono preamp)

TABLE

• Die-cast platter = 305mm diameter and 850g weight (including pad)
• Rubber pad = 2.5mm thick
• Spindle = hardened steel in brass housing

BASE

• Material = laminated MDF
• Finish = Vinyl film with black wood grain or real walnut veneer
• Legs = Ø 62 mm / Elastomer filling
• Digital = Bluetooth
• Connection = RCA connectors
• Connection to phono input of amplifier = YES (switchable phono amplifier)
• Connection to Line Input of Amplifier = YES (built-in Phono Amplifier)
• Dimensions with closed cover (WxHxD): 435 x 145 x 367 mm
• Dimensions with open cover (HxWxD): 400 x 415 mm
• Weight: 6.7 kg

POWER

• Separate power supply: DC 12 V / 0.5 A / 6 W

New model, tests to be completed...

• ORTOFON was founded in 1918 = we have a tradition of more than 100 YEARS
• all our history at ORTOFON we continuously innovate = you will always get the best from us
• ORTOFON focuses not only on delivering the best possible sound, but more importantly on the correct presentation of the sound = ORTOFON, what I take, I play
• ORTOFON is the world's No. 1 in portable production = our millions of customers can't be wrong
• ORTOFON is the world's largest supplier of cartridges for turntable manufacturers = ORTOFON quality is relied on (we also produce OEM cartridges for them under their own brands)
• We manufacture ORTOFON cartridges in the EU, Made in Denmark = all under one roof
• ORTOFON cables are manufactured according to the Japanese process of copper processing from the eighth century in Japan = Made in Japan
• ORTOFON holds the largest market share in sales of cables in the Czech and Slovak Republics = our sound suits you, thank you!
• ORTOFON in the Czech and Slovak Republic through importer and distributor, Horizon Trading Prague s.r.o. (HTP), provides an extended warranty of 3 years = when purchased from authorized dealers (valid for the pickups themselves and for pickups installed in DUAL, THORENS, ACOUSTIC SOLID, TRANSROTOR turntables)
• ORTOFON is recommended by Mr. Kuss, a legendary sound engineer from the world's largest vinyl record manufacturer, GZ Média, Lodenice, Czech Republic = ORTOFON is used by professionals from the Czech Republic

WHY NOT TO UNDERESTIMATE THE CHOICE OF A TURNTABLE CARTRIDGE?

The purpose of the transfer tube is to transfer the ripples in the recording groove of the vinyl record to the electrical oscillations, which are further amplified in the amplifier to be finally rendered through the speakers of the hi-fi system. A common feature of all the cartridges is a diamond tip (stylus) that mechanically tracks the recording groove and emits its modulations through a shaker (hinge) to a miniature generator, which then transforms the mechanical movements into an electric current (signal). In general, the better the quality of the tip cut and the less the mass of the moving part of the transmission, the better the transmission has a direct response to the ripple of the groove.

Thus, a transducer is a sophisticated musical instrument and every part of it must be perfect, as must be the choice of transducer for a given type of phono arm, etc.

Thus, the transfer case has a major influence on the final sound quality of the turntable and should cost 1/5, 1/3 to 1/2 the price of the turntable.

For the high fidelity model DUAL CS 529, we have pre-selected four MM models ORTOFON, 2M RED, 2M BLUE & thanks to the high-end arm also 2M BRONZE, 2M BLACKchoosethe model according to your own sound needs.

For fans of MC transducers and for use with an external MC Phono preamp, you can choose the CS 529 with ORTOFON QUINTET RED / QUINTET BLUEMC transducers.

MM system:

With MM moving magnet cartridges, the magnetic field is emitted from a small fixed magnet attached to the far end of the shaker (hinge). Once the magnet is set in motion, which occurs when the stylus (stylus) follows the modulations inside the groove on the plate, the magnetic field passes through the coils and changes to the electrical signal generated by the coils.

MM transmissions are less expensive to manufacture because the coils can be wound by machine and the partshigh output level coils are also less demanding to connect to the phono input. In addition, when the stylus tip wears out, you simply slide it out of the body of the transducer and reinsert a new tip (stylus).

The 2M RED is a REFERENCE among lower mid-range MM transceivers, not only because of its improved motor that provides a higherhigher output level, 5.5 mV, but also thanks to the optimized sound reproduction with a high level of sonic accuracy. The tip (stylus) is an elliptical diamond, and the separated pins are copper for better channel separation.The body of the transducer is made of Hopelex, an eco-friendly material that provides high rigidity while eliminating unwanted resonances.

2M REDprovides an open, dynamic sound with a slight hint of warmth.

The 2M BLUE is the REFERENCE among mid-range MM transmissions, not least because of its improved motor, which provides a higherhigher output level, 5.5 mV, but also thanks to optimized sound reproduction with a high level of sonic accuracy. The stylus (stylus) is already a rather expensive "naked" (nude) elliptical diamond and for better channel separation the separate pins are made of copper.The body of the pickup is made of Hopelex, an eco-friendly material that provides high rigidity while eliminating unwanted resonances.

2M BLUEadds more dynamics and resolution, sounds more open and reproduces more detail compared to the 2M RED model.

The 2M BRONZE is the REFERENCE among upper mid-range MM transmissions, not least because of its improved motor, which provides higherhigher output level, 5 mV, but also thanks to the optimized sound reproduction with a high level of sonic accuracy. The stylus is an expensive "nude" Fine Line diamond, which with its thin profile perfectly follows the recording groove, windsc, its larger footprint reduces distortion and reduces record wear, making it the choice of discerning listeners. For better channel separation, the separate pins are silver-plated copper.The body of the transducer is made of Hopelex, an eco-friendly material that provides high rigidity while eliminating unwanted resonances.

The2M BRONZE delivers a warmer yet more detailed sound with subtle high notes that will already satisfy the discerning vinyl listener.

The 2M BLACK is the REFERENCE among higher-end MM cartridges and the challenger to many MC cartridges, not only because of its improved motor that provides a higher output level, 5 mV, but also thanks to the optimized sound reproduction with a high level of sonic accuracy. The tip (stylus) is an expensive "nude" high-polished Line Contact Shibata diamond, which with its slim profile with a wide contact surface area perfectly follows the recording groove; moreover, its larger footprint reduces distortion and minimizes record wear, making it the choice of very demanding listeners. For better channel separation, the separate pins are silver-plated copper.The body of the transducer is made of Hopelex, an eco-friendly material that provides high rigidity while eliminating unwanted resonances.

The2M BLACK is probably the best MM transmission in the world in an affordable price range. Its sound delivers beautiful tones, brilliant dynamics and high resolution without any sign of aggression. If you want the best sound combined with high tip change comfort, the 2M BLACK is the obvious choice.

The entire 2M series has an optimized design to allow easy mounting of the cartridge, with weight and size to suit the most common turntables on the market today. Another advantage of the 2M series is the interchangeability of the styli in the two closest models.If you choose the 2M RED cartridge, you can purchase the STYLUS 2M BLUE in the future, insert it into the original body and improve your sound with a lower investment cost. The same can be applied between the 2M BRONZE, 2M BLACK models and you can even use the LVB 250 stylus in these bodies.

The 2M series thus provides excellent compatibility when used in a range of turntables and with a wide range of phono MM preamps, which is why it is also the choice of the German phono brand DUAL.

MC system:

MC-type, i.e. moving coil, cartridges use the opposite design principle to MM-type cartridges. In the MC system, a strong non-moving magnet is used and the coils are carefully and mainly hand wound around the bobbin (the hinge of the spike, or the end of the spike). stylus), so the weight of the moving part is much less and compared to the MM system it has a better direct recourse to the corrugation of the groove. Once the coils are set in motion, which occurs when the tip (stylus) follows the modulations inside the groove on the plate, the coils move in a magneticm field of the magnet and the field of the magnet is interrupted, thereby generating an electrical voltage, a signal, directly on the coils.

MC transmissions are the most sophisticated and also the most expensive in design. The advantage is that they work on the same MC principle as the recording cutting head. The disadvantage is that the coils are part of the moving part of the transfer case and tip replacement can only be applied to them by factory-trained personnel. Precisely because of the advantages and disadvantages, MC reels are intended for the most demanding listeners.

HUGE ADVANTAGE of ORTOFON MC Transmissions:

The factory is in Denmark, making it available to distributors throughout the EU. This means that the end customer who owns an ORTOFON MC transducer receives the best possible service in case a tip needs to be replaced.

QUINTET RED is the perfect entry into the world of ORTOFON MC transceivers. This basic MC cartridge has a very high price/performance ratio and is regularly awarded by professional magazines worldwide, most recently winning the Golden Ear 2020 from Stereoplay, Germany.

The stylus is a polished and highly polished elliptical diamond mounted on a lightweight aluminium quiver, cut to ORTOFON's exact standards. The body is made of a special ABS (acrylonitrile/butadiene/styrene) thermoplastic compound. This lightweight, impact resistant material is very suitable for injection moulding and provides a very scratch resistant surface. Neodymium magnets are implemented for optimum performance and the low internal impedance makes transmission line less sensitive to load and therefore ensures compatibility with the widest range of preamplifiers and step up transformers.

QUINTET RED provides an open, dynamic sound with a slight hint of warmth.

QUINTET BLUE is the perfect entry into the more advanced world of ORTOFON MC transmissions. This MC transducer also has a very high price/performance ratio and is regularly recognized by professional magazines around the world, most recently receivingIt was awarded 5 stars by the UK's What Hi-Fi magazine and also won the award for the best MC transmission of 2020 in the affordable category.

The stylus is an expensive "nude" high-polished elliptical diamond mounted on a lightweight aluminium shaker, cut to ORTOFON's exact standards. The body is made of a special ABS (acrylonitrile/butadiene/styrene) thermoplastic compound. This lightweight, impact resistant material is very suitable for injection moulding and provides a very scratch resistant surface. Neodymium magnets are implemented for optimum performance and the low internal impedance makes transmission line less sensitive to load and therefore ensures compatibility with the widest range of preamplifiers and step up transformers.

QUINTET BLUE brings more space, depth and detail to your sound and is a very good choice for any kind of music, especially rhythmic music.

WHAT TO LOOK OUT FOR IN TRANSDUCERS?

Obviously, overall careful handling of the transducer, tremolo and stylus is necessary. In addition to increased caution, it is also necessary to take care to replace the stylus in a timely manner. Wear and tear of the stylus (MM & MI systems) or the entire transfer case (MC system) = the wear of the stylus is set at 1,000 hours without deterioration of the sound quality and after 1,500 hours it must be replaced. If you don't do this, you risk damaging every record you play by grinding out the grooves in it. At the price of a 1pc vinyl record, the hassle of replacing the stylus or the entire transfer is not a saving, but a loss! (to monitor the recorded hours of the stylus or the whole cartridge you can use the Stylus Timer Tonar)

WHAT IS THE MOST IMPORTANT THING TO REMEMBER WITH ANALOGUE?

Cleanliness....

Transmission, or rather its tip (stylus) and vinyls must be regularly cleaned to which use only branded cleaners, brushes, cloths, record washers.

With proper care, the turntable / cartridge / vinyl will reward you with the beauty of analogue sound.

• 2 years legal

+

• 1 year extended (provides DUAL)

+

• 2 years free service (provided by DUAL, during these 2 years the customer pays only for spare parts)

=

• This brings the total warranty on the new DUAL CS series to an extra 5 YEARS

NOTICE:

• the rubber strap is guaranteed for 6 months
• the transmission is subject to a 3 year ORTOFON CZ & SR warranty, the warranty does not cover mechanical damage to the transmission or mechanical wear and tear of the transmission
