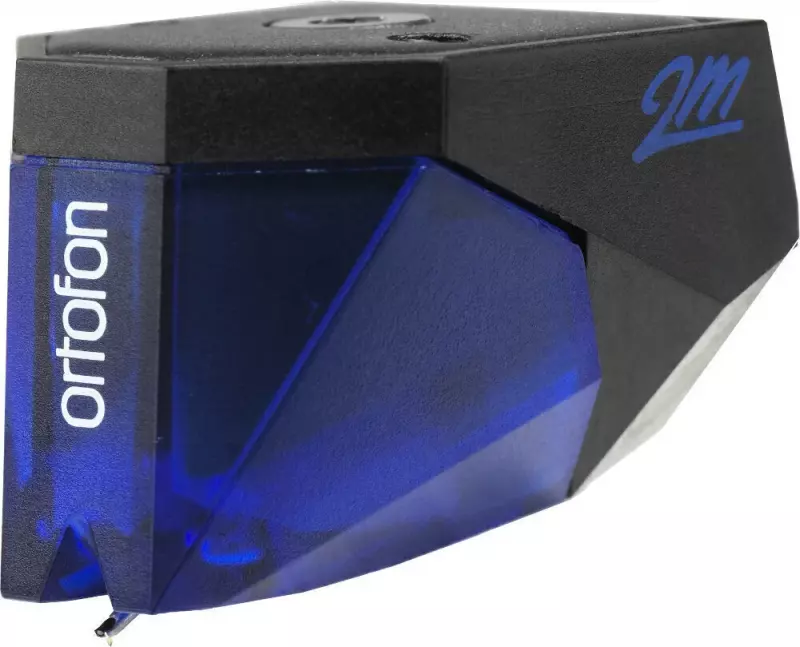

Ortofon 2M BLUE

MM transmission, diamond elliptical tip Package includes: tip brush, screwdriver and screws Characteristics: More accurate sound reproduction Exceptional value for money high-resolution sound suitable for modern recordings bare elliptical diamond copper OFC conductors Output voltage at 1000 Hz, 5cm/sec. 5...

Meer Produkt-ID: 158102 EAN: 5705796080025

Bestprijsgarantie

Als je dit product elders goedkoper vindt, compenseren wij het verschil!
meer informatie

Status

Nieuw

Prijs

203,99 € Gratis verzending

Beschikbaarheid

Onderweg 2 st.

Beschrijving
Specificaties

MM transmission, diamond elliptical tip

Package includes: tip brush, screwdriver and screws

Characteristics:

More accurate sound reproduction
Exceptional value for money
high-resolution sound suitable for modern recordings
bare elliptical diamond
copper OFC conductors

Output voltage at 1000 Hz, 5cm/sec.	5.5 mV
Channel balance at 1 kHz	1.5 dB
Channel separation at 1 kHz	25 dB
Channel separation at 15 kHz	15 dB
Frequency range at - 3 dB	20-25,000 Hz
Frequency response	20-20,000 + 2 / - 1 dB
Tracking capability at 315Hz	80 um
Compliance	20 um/mN
Tip radius	r / R 8 / 18 ?m
Clamping force range	1.6-2.0 g (16-20 mN)
Internal impedance, DC resistance	1.3 kOhm
Internal inductance	700 mH
Recommended load resistance	47 kOhm
Recommended load capacitance	150-300 pF

Eigenschappen

Type

Gewicht

7,2 g

Kijkhoek

20 °

Frequentiebereik

20 - 20 000 Hz

Naald

Elliptisch
