Audiotechnica Ortofon Concorde Music Blue

Ortofon Concorde Music Blue

Premium MM cartridge, naked elliptical tip, diamond tip (tipped)Building on a rich heritage that began when we launched the original Concorde, Concorde Music has a storied history as one of the most celebrated cartridges in the audio world. Originally developed as a solution to the challenge of easy mounting on an arm without screws and wires, C...

Meer Produkt-ID: 554525 EAN: 5705796080636

Bestprijsgarantie

Als je dit product elders goedkoper vindt, compenseren wij het verschil!
meer informatie

Status

Nieuw

Prijs

247,99 € Gratis verzending

Beschikbaarheid

Een week

Beschrijving

Premium MM cartridge, naked elliptical tip, diamond tip (tipped)
Building on a rich heritage that began when we launched the original Concorde, Concorde Music has a storied history as one of the most celebrated cartridges in the audio world. Originally developed as a solution to the challenge of easy mounting on an arm without screws and wires, Concorde's unique design has won the Danish Industrial Design Award and become an icon in the audio industry.
Made in Denmark

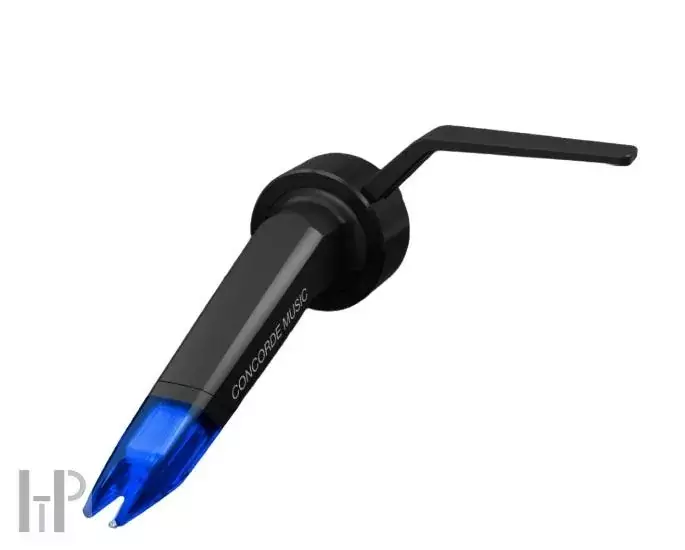

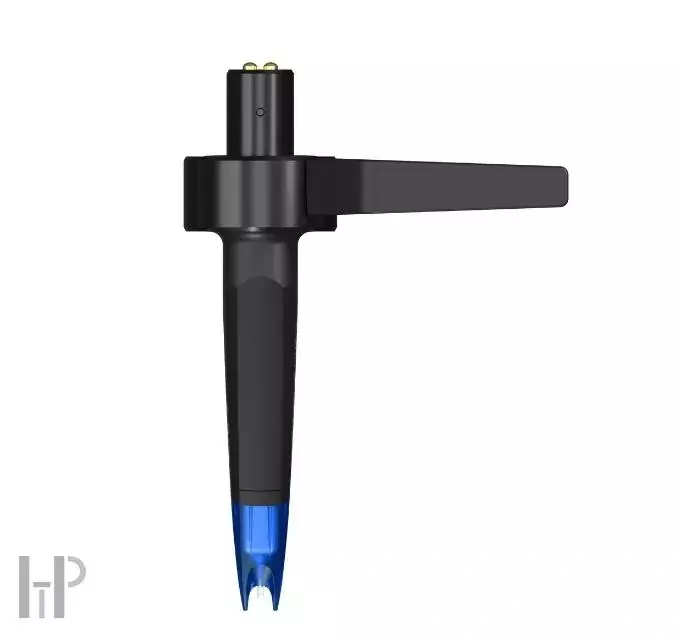

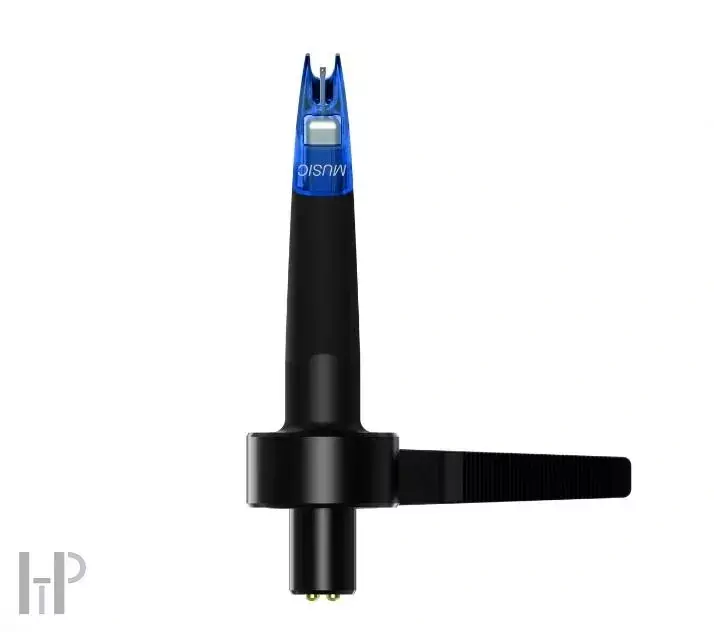

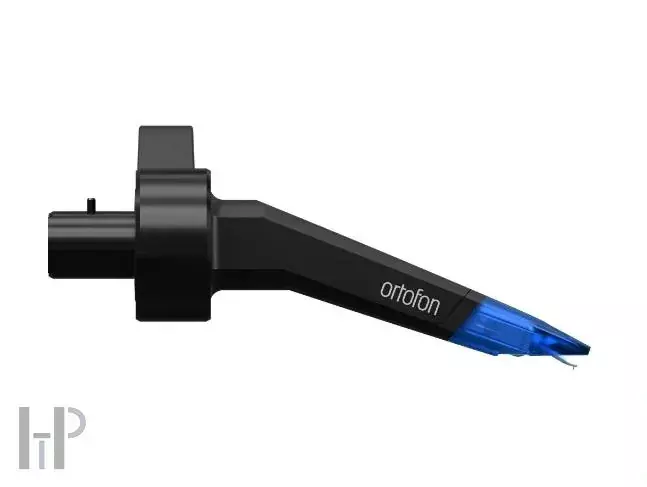

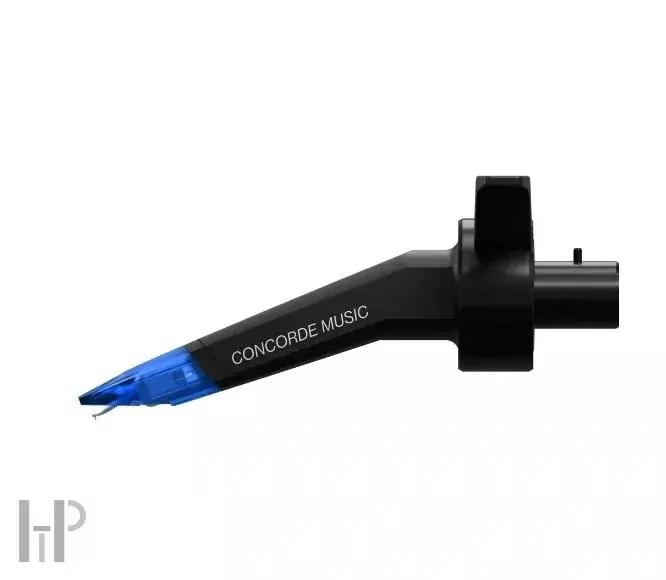

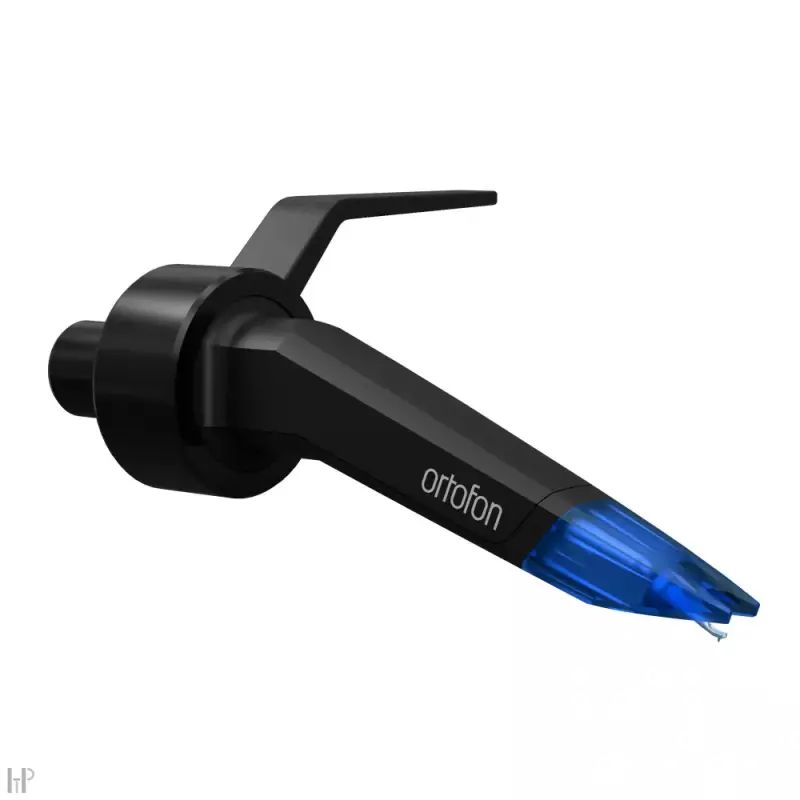

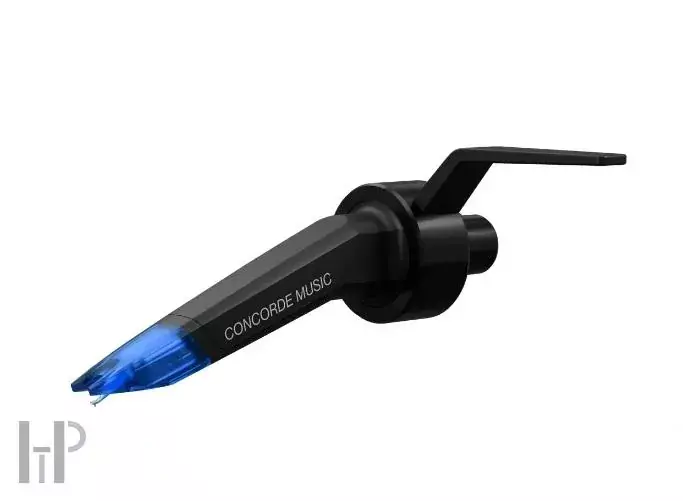

Concorde Music Blue

Experience stunning, clear sound reproduction with Concorde Music Blue, featuring a high-quality Nude Elliptical tip on an aluminium beam and offering an upgrade from Concorde Music Red. Enjoy seamless upgrades throughout the series, from Concorde Music Blue to Concorde Music Black LVB 250, and it's very simple... by changing the stylus.

A simple solution for easy installation on the S-arm without screws and wires !

Installing a Music Concorde series transfer case on your turntable is easy and straightforward. No tools are required, making installation hassle-free and convenient for all users. This is thanks to the bayonet/SME connector, which makes it compatible with all S-shaped arms.

NO - for installation on straight arms ! Curved and S-shaped only.

The Concorde Music can be upgraded with any stylus in the Concorde Music series, allowing an upgrade path throughout the series all the way up to the Concorde Music Black LVB 250.

Specifications:

Channel balance at 1 kHz
1.5 dB
Output voltage at 1 kHz, 5 cm/sec
6 mV
Channel separation at 1 kHz
25 dB
Channel separation at 15 kHz
15 dB
Frequency range 20Hz - 20kHz
+2/-1 dB
Tracking capability at 315 Hz at recommended tracking strength
80 um
Flexibility, dynamic, lateral
15 um/mN
Stylus type
Bare Shibata diamond on aluminium bracket / Nude Elliptical diamond
Touch tip radius
r/R 8/18 um
Tracking force, recommended
1,8 g
Tracking angle
20°
Internal impedance, DC resistance
1.27 kΩ
Transmitter colour
Black/Blue
Cartridge weight
18 g
Recommended load resistance
47 kΩ
Internal inductance
815 mH
Recommended load capacitance
150-300 pF
