Audiotechnica Přenoska Pro-Ject Pick It S2 MM

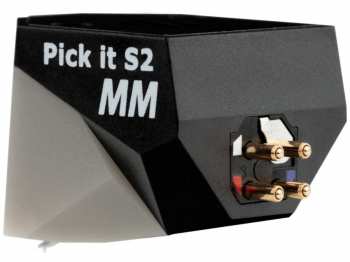

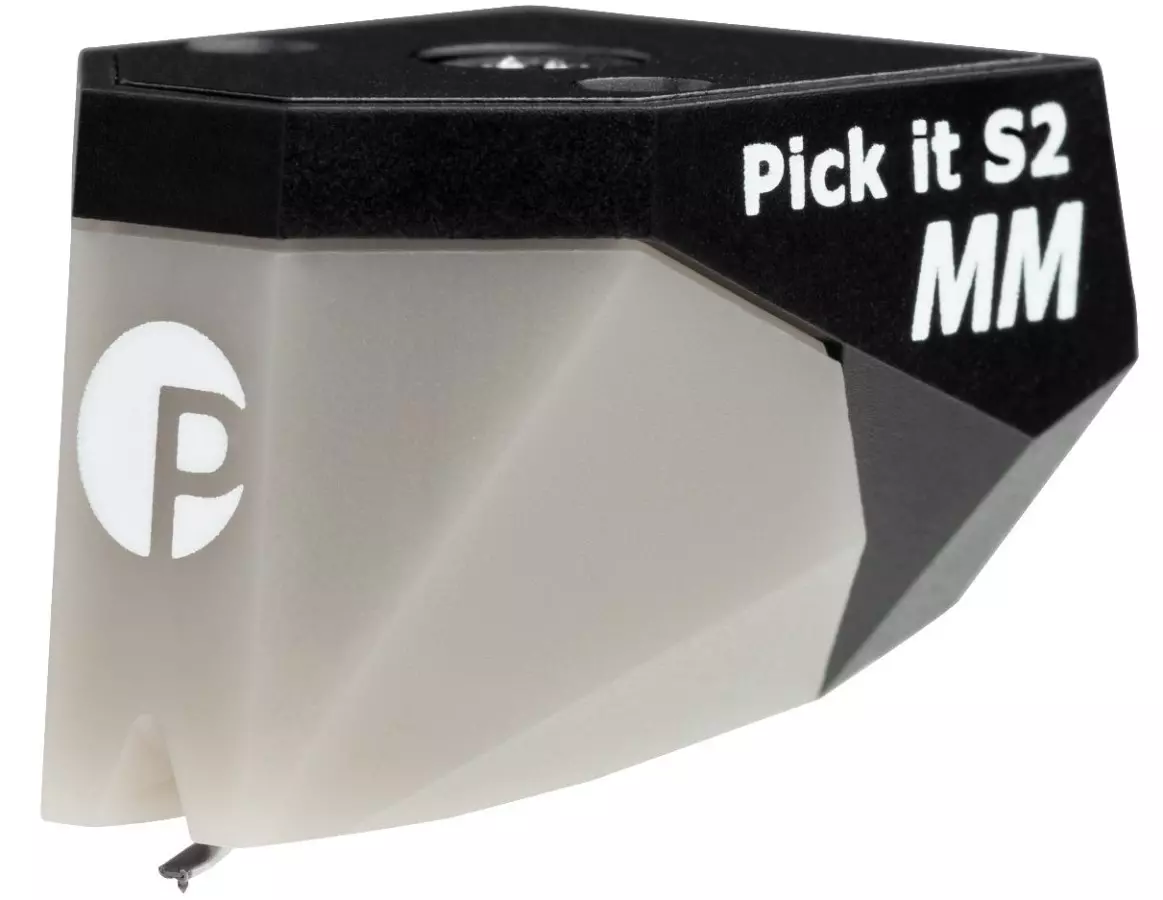

Pro-Ject Pick It S2 MM

MM transmission with moving magnet on the platform of the proven ORTOFON 2M series Transmitter specially developed for Pro-Ject on the ORTOFON 2M series platform. Thanks to the separate pole pins, it delivers a flat frequency response similar to MC moving coil transmissions. The high output voltage value guarantees a very warm sound with p...

Meer Produkt-ID: 279659 EAN: 9120097822529

Bestprijsgarantie

Als je dit product elders goedkoper vindt, compenseren wij het verschil!
meer informatie

Status

Nieuw

Prijs

119,99 € Gratis verzending

Beschikbaarheid

Onderweg

Beschrijving
Specificaties

MM transmission with moving magnet on the platform of the proven ORTOFON 2M series

Transmitter specially developed for Pro-Ject on the ORTOFON 2M series platform. Thanks to the separate pole pins, it delivers a flat frequency response similar to MC moving coil transmissions.

The high output voltage value guarantees a very warm sound with perfect space imaging. Allows mounting on all 1" mount arms with low and medium weight and is compatible with all MM phono preamplifiers.

The Pick it S2 MM was selected to fit the EISA award winning Pro-Ject X1 turntable.

TECHNICAL SPECIFICATIONS

- Weight: 7,2 g

- Tip: Elliptical

- Frequency response: 20 - 20,000 Hz

- Output Voltage: 7 mV

- Tracking power range: 1,6 - 2,0 g

- Recommended downforce: 1,8 g

- Internal inductance: 700 mH

- Viewing angle: 20˚

- Recommended impedance: 47 kΩ

- Recommended load capacitance: 150 - 300 pF

Eigenschappen

Aanbevolen druk

1,8 g

Frequentiebereik

20 – 20 000 Hz

Gewicht

7,2 g

Naald

Elliptisch

Impedantie

47 Ω

Type

Uitgangsspanning

7 mV

Kijkhoek

20 °
