Pro-Ject Antiskating gewicht

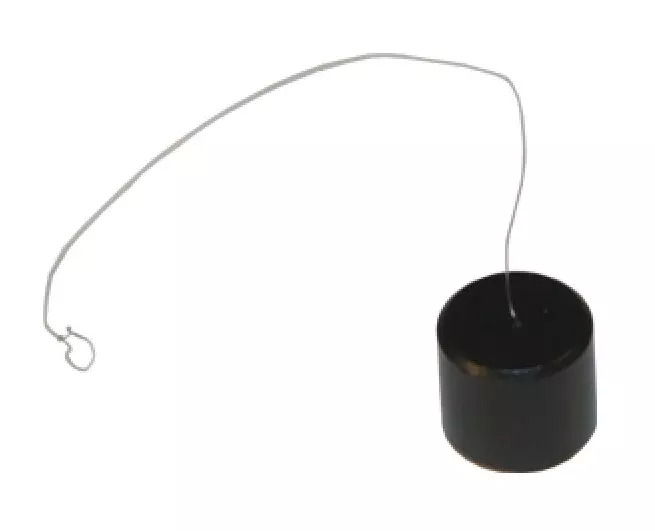

Replacement anti-skating weight with nylon line

• Original spare parts
• The weight is designed for Pro-Ject turntable arms

The anti-skating weight is attached to a thin nylon line with a loop. This loop should be threaded onto the axle (located on the back of the arm on most Pro-Ject turntables) and hung over the metal line support* (next to the arm) as shown in the illustration.

The weight is a direct replacement in case the original part is damaged or lost.

Weight of weight including line: 3.5 g

*Please note: Metal support for the line guide and other parts are not included in the price.

ANTI-SKATING SETTINGS ARE NOT INCLUDED.

Hook the loop on the end of the anti-skating weight line into the corresponding scale groove on the mandrel recommended pressure for your transmission and place the line over the support of the anti-skating mechanism so that the weight hangs down freely.

Adjust the anti-skating force by placing the weight thread in the appropriate groove (scale) of the mandrel. The lateral force on the spike (anti-skating) should be set in line with the vertical force on the spike (downforce) as follows:

ARM PRESSURE (vertical force on the tip)POSITIONING IN THE ANTI-SKATING GROOVE

10 to 14 mN or 1.0 to 1.4 g1. groove from shoulder bearing

15 to 19 mN or 1,5 to 1,9 g2. shoulder bearing groove

20 mN and greater3. groove from the arm bearing
