Tonar E-FLIP

1/2" MM HiFi Transmission with aluminium shaker and elliptical diamond tip Tonar 3600 E-Flip One of the most popular entry-level Entry Level MM cartridges An affordable solution suitable for entry and mid-range turntables Elliptical diamond tip Parameters: Frequency range: 20 - 20,000 Hz / +-3dB Channel balance: 1.5 dB...

Meer Produkt-ID: 158114

Status

Nieuw

Prijs

55,99 €

Beschikbaarheid

Om te bestellen

Beschrijving
Specificaties

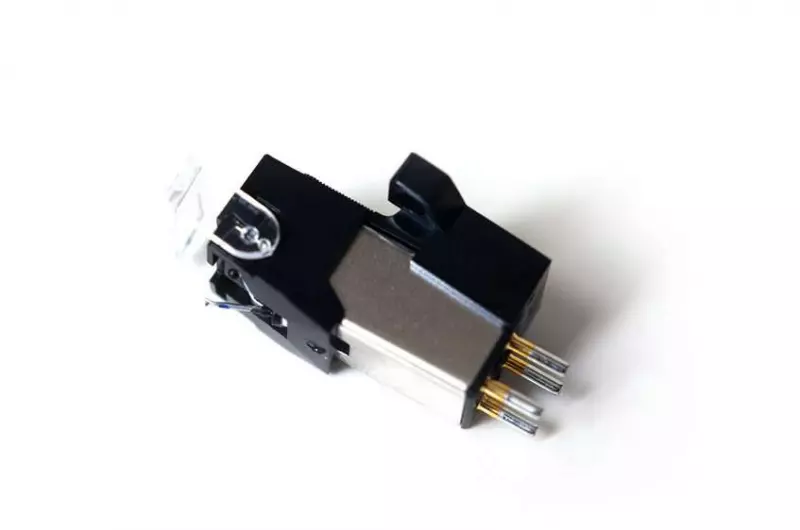

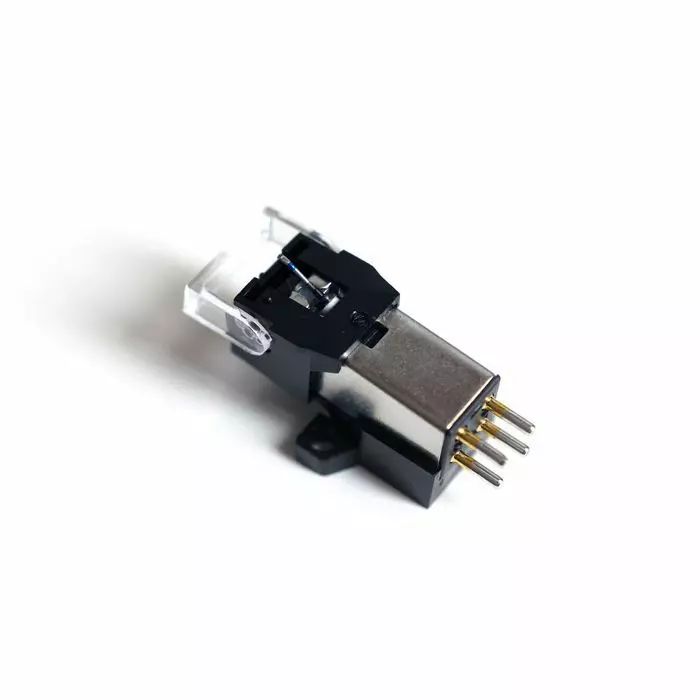

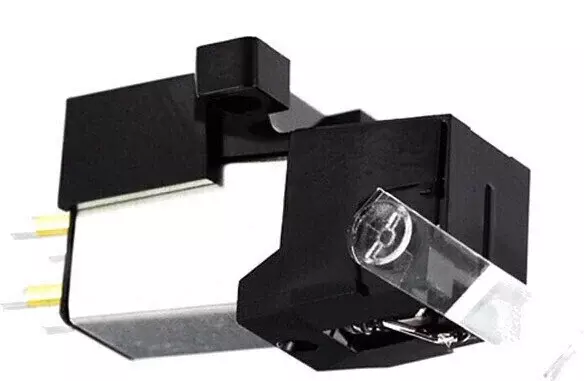

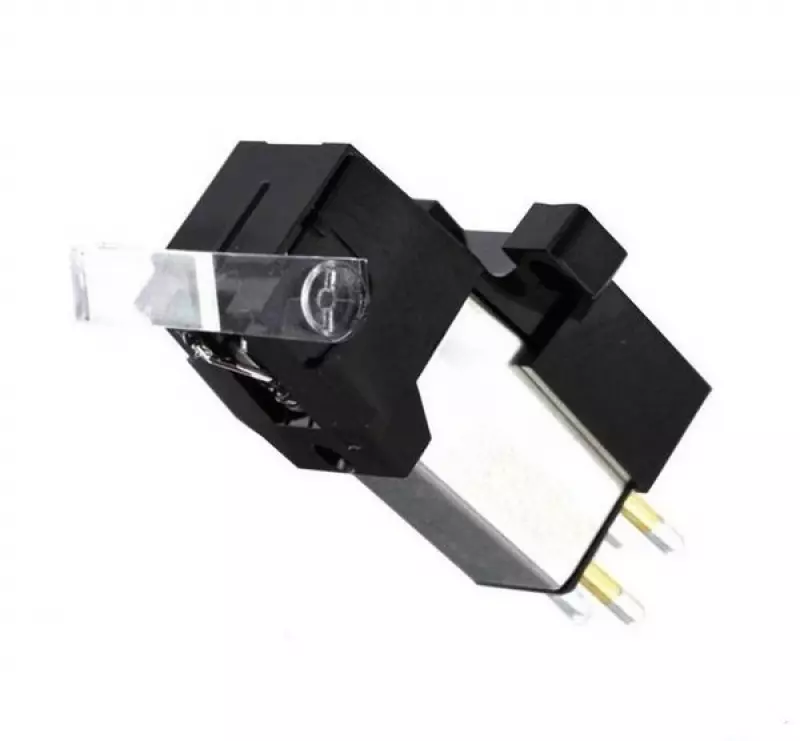

1/2" MM HiFi Transmission with aluminium shaker and elliptical diamond tip Tonar 3600 E-Flip
One of the most popular entry-level Entry Level MM cartridges
An affordable solution suitable for entry and mid-range turntables
Elliptical diamond tip

Parameters:

Frequency range: 20 - 20,000 Hz / +-3dB
Channel balance: 1.5 dB
Vertical force per stylus: 1.5 to 2.5 g / recommended: 1.75 g
Recommended load impedance / capacitance: 47Kohms / 100pF
Output voltage: 3.5 mV (mV at 1 kHz, 5 cm/sec)
Stylus - 0.3 x 0.7 mil Elliptical
All-aluminum wobble

Eigenschappen

Aanbevolen druk

1,75 g

Frequentiebereik

20 - 20 000 Hz

Naald

Elliptisch

Impedantie

47 Ω

Type

Uitgangsspanning

3,5 mV

Kijkhoek

24 °
